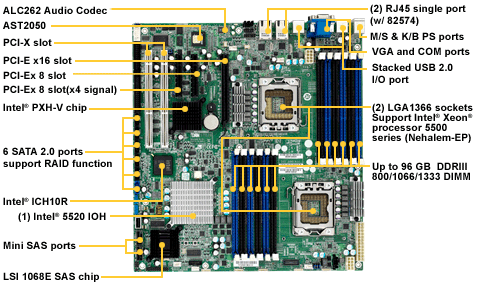

TYAN S7020
TYAN S7020-S7020WAGM2NR
| Processor | Supported CPU Series | Intel Xeon Processor 5500/ 5600 Series | |
| Socket Type / Q'ty | LGA1366 / (2) | ||
| Thermal Design Power (TDP) wattage | Max up to 130W | ||
| Chipset | IOH / ICH | Intel 5520 / ICH10R | |
| Super I/O | Winbond W83627DHG | ||
| PCI-X bridge | Intel 6702PXH | ||
| Memory | Supported DIMM Qty | (12) DIMM slots | |
| DIMM Type / Speed | DDR3/DDR3L 800/1066/1333* RDIMM/UDIMM | ||
| Capacity | Up to 96GB at launch w/ dual rank RDIMMs | ||
| Memory channel | 3 Channels per CPU | ||
| Memory voltage | 1.5V or 1.35V | ||
| Expansion Slots | PCI-E | (1) PCI-E x8 slot (w/ x4 link) / (1) PCI-E Gen.2 x16 slot / (1) PCI-E Gen.2 x8 slot | |
| PCI-X | (2) PCI-X 64-bit 133/100MHz slots | ||
| LAN | Port Q'ty | (2) | |
| Controller | Intel 82574L | ||
| Storage | SAS | Connector | (2) Mini-SAS connectors (totally support 8 ports) |
| Controller | LSI SAS1068E | ||
| Speed | 3.0 Gb/s | ||
| RAID | RAID 0/1/1E (LSI Integrated RAID) | ||
| SATA | Connector | (6) SATA | |
| Controller | ICH10R | ||
| Speed | 3.0 Gb/s | ||
| RAID | RAID 0/1/10/5 (Intel Matrix RAID) | ||
| Graphic | Connector type | D-Sub 15-pin | |
| Resolution | 1600x1200@60Hz | ||
| Chipset | Aspeed AST2050 | ||
| Audio | Chipset | Realtek ALC262 | |
| Feature | HDA 2.0 spec. complaint | ||
| Notice: | 3-port audio bracket cable is optional | ||
| Input /Output | USB | (9) USB2.0 ports (4 at rear, 4 via cable, 1 type A onboard) | |
| COM | (2) ports (1 at rear, 1 via cable) | ||
| SAS | (2) Mini-SAS (4-in-1) connectors | ||
| VGA | (1) D-Sub 15-pin VGA port | ||
| Audio | (1) CD_IN header / (1) 2x5-pin front panel audio header / (1) 2x6-pin rear audio jack header | ||
| RJ-45 | (2) GbE ports | ||
| LPT | (1) LPT header | ||
| Power | SSI 24-pin + 8-pin + 8-pin power connectors / EPS12V | ||
| Front Panel | (1) 2x12-pin SSI front panel header | ||
| FDD | (1) FDD connector | ||
| SATA | (6) SATA-II connectors | ||
| System Monitoring | Chipset | Winbond W83793G | |
| Voltage | Monitors voltage for CPU, memory, chipset & power supply | ||
| Fan | Total (5) 4-pin headers / Total (5) 8-pin headers | ||
| Temperature | Monitors temperature for CPU & system environment | ||
| Others | Chassis intrusion detection / Watchdog timer support | ||
| Server Management | Onboard Chipset | Onboard Aspeed AST2050 | |
| AST2050 IPMI Feature | IPMI 2.0 compliant baseboard management controller (BMC) / Supports storage over IP and remote platform-flash / USB 2.0 virtual hub | ||
| AST2050 iKVM Feature | 24-bit high quality video compression / Dual 10/100 Mb/s MAC interfaces | ||
| BIOS | Brand / ROM size | AMI / 4MB | |
| Feature | Plug and Play (PnP) /PCI2.3 /WfM2.0 /SMBIOS2.3 /PXE boot / ACPI 2.0 power management /Power on mode after power recovery / User-configurable H/W monitoring / Auto-configurable of hard disk types | ||
| Physical Dimension | Form Factor | SSI EEB | |
| Board Dimension | 12"x13" (305x330mm) | ||
| Operating System | OS supported list | Please refer to our OS supported list. | |
| Regulation | FCC (DoC) | Class B | |
| CE (DoC) | Yes | ||
| Operating Environment | Operating Temp. | 10° C ~ 35° C (50° F~ 95° F) | |
| Non-operating Temp. | - 40° C ~ 70° C (-40° F ~ 158° F) | ||
| In/Non-operating Humidity | 90%, non-condensing at 35° C | ||
| RoHS | RoHS 6/6 Complaint | Yes | |
| Package Contains | Motherboard | (1) S7020 Motherboard | |
| Manual | (1) User's manual / (1) Quick Ref. Guide | ||
| Installation CD | (1) TYAN installation CD | ||
| I/O Shield | (1) I/O Shield | ||
| Cable | SATA | (6) SATA signal cables | |
| SAS | (2) Mini-SAS (2x SFF-8470) cables | ||
| USB | (1) CCBL-035J, 2-port USB bracket cable | ||
| Audio | (1) CCBL-0613, 3-POS audio bracket cable | ||
| Optional accessories | Cable | (1) CCBL-0615, COM port bracket cable / (1) CCBL-0311, SATA 1-to-2 power cable / (1) CCBL-035J, 2-port USB bracket cable | |
