TYAN GT20B7002

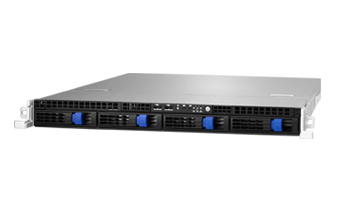

TYAN GT20B7002 - B7002G20V4H
| System | Form Factor | 1U Rackmount | |
| Chassis Model | GT20 | ||
| Dimension (D x W x H) | 22.4" x 17.2" x 1.72" (568 x 436 x 43.6mm) | ||
| Motherboard | S7002GM2NR-LE | ||
| Gross Weight | 16 kg | ||
| Front Panel | Buttons | (1) RST / (1) NMI / (1) ID / (1) PWR w/ LED | |
| LEDs | (1) HDD / (2) LAN / (1) ID / (1) Warning / (1) Reserved | ||
| I/O Ports | (2) USB ports | ||
| External Drive Bay | Type / Q'ty | 3.5" Hot-Swap / (4) | |
| Supported HDD Interface | SATA-II 3.0Gb/s | ||
| System Cooling Configuration | FAN | (5) 4cm fans | |
| Power Supply | Type | EPS1U | |
| Efficiency | PFC / 80-plus | ||
| Input Range | Full-range AC(100-240V) | ||
| Frequency | 47 - 63 Hertz | ||
| Output Watts | 400 Watts | ||
| Processor | Supported CPU Series | Intel Xeon Processor 5500/ 5600 Series | |
| Socket Type / Q'ty | LGA1366 / (2) | ||
| Thermal Design Power (TDP) wattage | Max up to 95W | ||
| System Bus | Up to 4.8/ 5.86/ 6.4GT/s with Intel QuickPath Interconnect (QPI) support | ||
| Chipset | IOH / ICH | Intel 5500 / ICH10R | |
| Super I/O | Winbond W83627 | ||
| Memory | Supported DIMM Qty | (8) DIMM slots | |
| DIMM Type / Speed | DDR3/DDR3L 800/1066/1333* RDIMM/UDIMM | ||
| Capacity | Up to 64GB | ||
| Memory channel | 3 Channels per CPU | ||
| Memory voltage | 1.5V or 1.35V | ||
| Expansion Slots | PCI-E | (1) PCI-E Gen.2 x16 slot | |
| Pre-install TYAN Riser Card | M2083-RS, PCI-E x16 1U riser card (left) | ||
| Max. HBA Dimension (H x L) | (1) 111.15mm x 167.65mm (FH/HL) | ||
| LAN | Port Q'ty | (2) | |
| Controller | Intel 82574L | ||
| Storage | SATA | Controller | ICH10R |
| Speed | 3.0 Gb/s | ||
| RAID | RAID 0/1/10/5 (Intel Matrix RAID) | ||
| Graphic | Connector type | D-Sub 15-pin | |
| Resolution | 1600x1200@60Hz | ||
| Chipset | Aspeed AST2050 | ||
| I/O Ports | USB | (6) ports (2 at front, 4 at rear) | |
| COM | (1) DB-9 COM port | ||
| VGA | (1) D-Sub 15-pin port | ||
| RJ-45 | (2) ports | ||
| System Monitoring | Chipset | Winbond W83793G | |
| Voltage | Monitors voltage for CPU, memory, chipset & power supply | ||
| Temperature | Monitors temperature for CPU & system environment | ||
| LED | Fan fail LED indicator / Over temperature warning indicator | ||
| Others | Watchdog timer support | ||
| Server Management | Onboard Chipset | Onboard Aspeed AST2050 | |
| AST2050 IPMI Feature | IPMI 2.0 compliant baseboard management controller (BMC) / Supports storage over IP and remote platform-flash / USB 2.0 virtual hub | ||
| AST2050 iKVM Feature | 24-bit high quality video compression / Dual 10/100 Mb/s MAC interfaces | ||
| BIOS | Brand / ROM size | AMI / 2MB | |
| Feature | Plug and Play (PnP) /PCI2.3 /WfM2.0 /SMBIOS2.3 /PXE boot / ACPI 2.0 power management /Power on mode after power recovery / User-configurable H/W monitoring / Auto-configurable of hard disk types | ||
| Operating System | OS supported list | Please refer to our OS supported list. | |
| Regulation | FCC (DoC) | Class A | |
| CE (DoC) | Yes | ||
| Operating Environment | Operating Temp. | 10° C ~ 35° C (50° F~ 95° F) | |
| Non-operating Temp. | - 40° C ~ 70° C (-40° F ~ 158° F) | ||
| In/Non-operating Humidity | 90%, non-condensing at 35° C | ||
| RoHS | RoHS 6/6 Complaint | Yes | |
| Package Contains | Motherboard | (1) S7002GM2NR-LE Motherboard | |
| Barebone | (1) GT20B7002 Barebone | ||
| Manual | (1) MB User's manual + (1) BB User's manual | ||
| Installation CD | (1) TYAN installation CD | ||
| Heatsink / Cooler | (2) CHSK-0370, LGA1366 CPU heatsinks | ||
| Rail kit | (1) CRAL-0032, sliding rail kit for KGT20 | ||
| Mounting Ear | (1) CEAR-0120, mounting ear kit | ||
| Backplane | (1) M1232, 4-port SAS/SATA HDD backplane and fan control board | ||
| Others | (1) screw pack | ||
| Cable | Power Cord | (1) CCBL-0310, US type power cord / (1) CCBL-0300, EU type power cord | |
| Optional accessories | Front Bezel | (1) CFBZ-0070, Front bezel for GT series 1U chassis | |
| Peripheral | (1) CDVD-0060, slim type DVD-ROM / (1) CCBL-0422, slim ODD SATA cable | ||
